4.5" GAS JT GLADIATOR LONG ARM LIFT KIT SUSPENSION SYSTEMS

EVO MFG
EVO-3187
$5,161.24
$5,161.24

JEEP GLADIATOR JT (Gas) 4.5” LONG ARM SUSPENSION SYSTEMS

ALL TRIMS: SPORT, OVERLAND, RUBICON, MOJAVE

The EVO MFG 4.5” Jeep Gladiator JT Long Arm Suspension Systems lift your 2020+ Jeep Gladiator JT 4.5”s.

The JT Long Arm kits are specifically designed and engineered to lift and level your JL and maintain a performance spring rate, smooth ride quality all while retaining tow capacities.

These kits allow for use of your choice of any aftermarket 2.5-5” lift shock or use of our EVO SPEC tuned 2.5” Remote Reservoir King Shocks.

These kits come with a set of 4.5” lift springs specific to each corner which will keep the Jeep Gladiator JT level side to side.

The EVO MFG 4.5" JT Long Arm Kits require no driveshaft or exhaust modifications. Stock Front and Rear Driveshafts compatible when paired with Packaged Shocks

The EVO MFG JT Long Arm kits are available in multiple configurations to suit your needs and budget and are upgradable down the road.



EVO MFG Jeep Gladiator Long Arm Upgrade



The EVO MFG Gladiator Long Arm upgrade kit through specifically designed bracketry allows for ultimate suspension performance and chassis clearance, larger wheel travel ability, optimal suspension geometry with increased ride quality.


Clearance, ride quality, performance and ease of installation was our focus in creating this long arm suspension system. The front arms mount tucked up inside nearly flush with the bottom of the frame mounting inches above the stock front lower mounting bracket. The rear mounting locations for the long arm are on the side of the frame, half above the bottom giving ideal clearance and geometry.


Keeping optimal geometry while maintaining as much clearance was critical in the design of this system. This allows for good ground clearance but just as importantly retaining flat and optimal control arm angles giving ideal ground clearance, smooth ride quality and long travel ability.


The mounting brackets are specifically designed to require no exhaust cutting on 3.6L and Diesel Jeep Gladiators and have full length hard-face mounting surfaces that weld to your frame giving redundant and ample welding area and strength to their mounting. The mounting brackets align to the frame simply using existing factory holes giving complete assurance of proper locating during install. Simply bolt brackets up to frame with existing hardware and weld them in place. Quick install. No significant multiple holes in frame to be drilled.


EVO MFG Long Arm joints feature Johnny Joints on both ends of the control arms for restriction free articulation and motion with no wearable and limited bond rubber. All EVO MFG lower long arms are built with strength in mind.


These arms are made from industry leading 2.0” x .281” wall Steel DOM Tubing.
Cutting and grinding of frame brackets required. Welding required.

4 Link Front and Rear Suspension System

These kits require wheel spacers or aftermarket wheels with smaller backspacing.

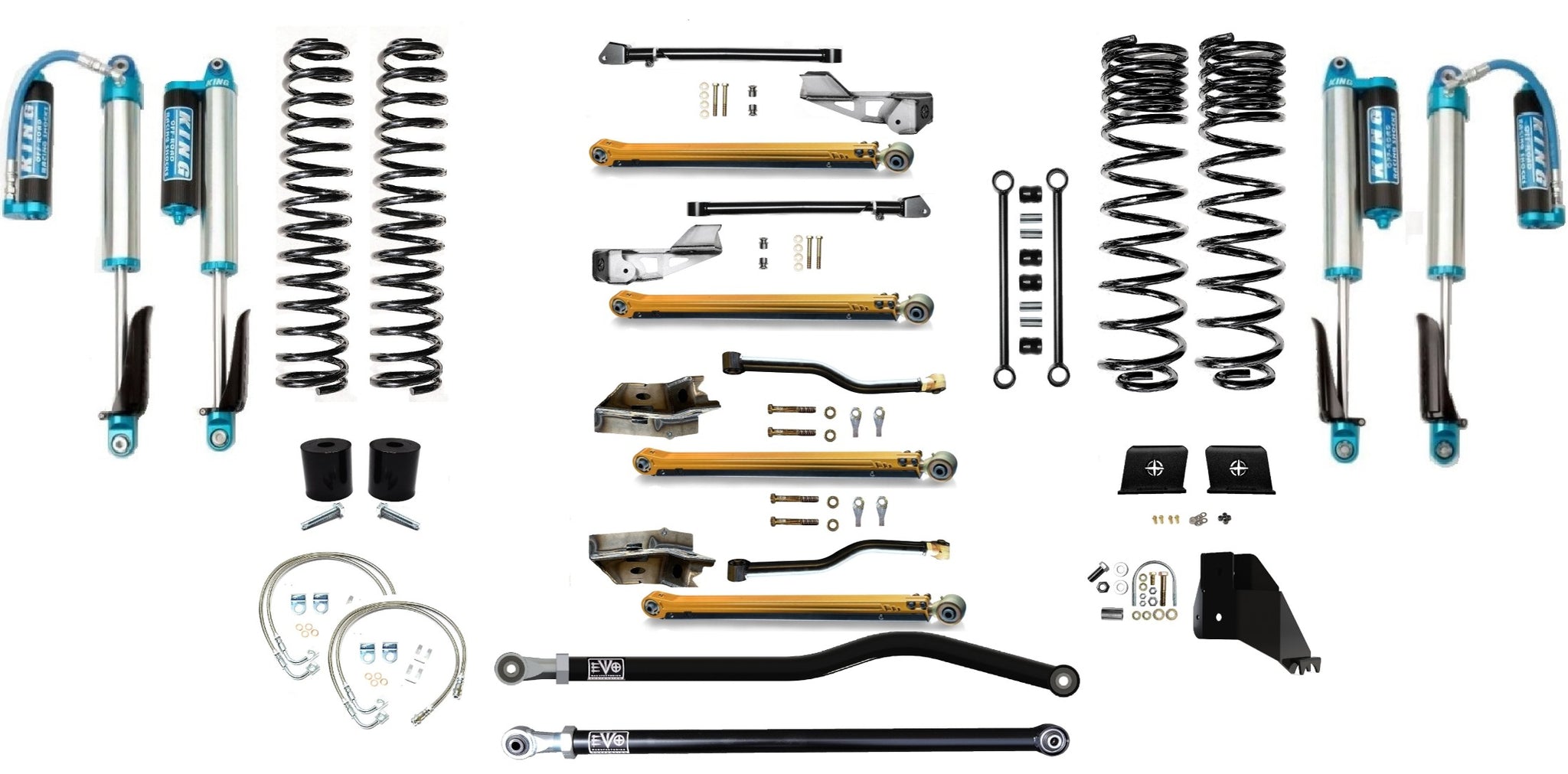

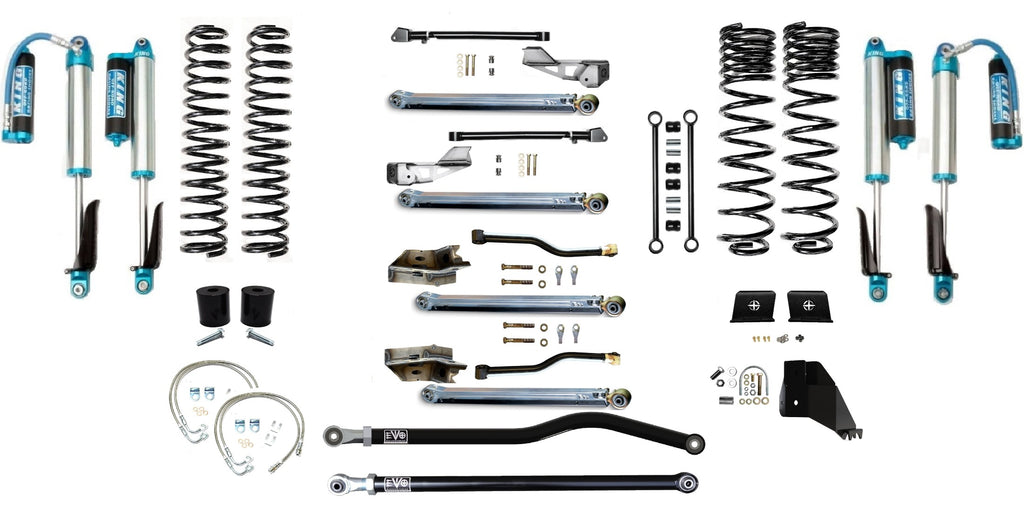

Front and rear adjustable trackbars to fine tune axle center are included with PLUS “P” kits.

FOR 4.5"/6.5" JT Lifts: Front & Rear Adjustable Trackbars are required for proper alignment/install.

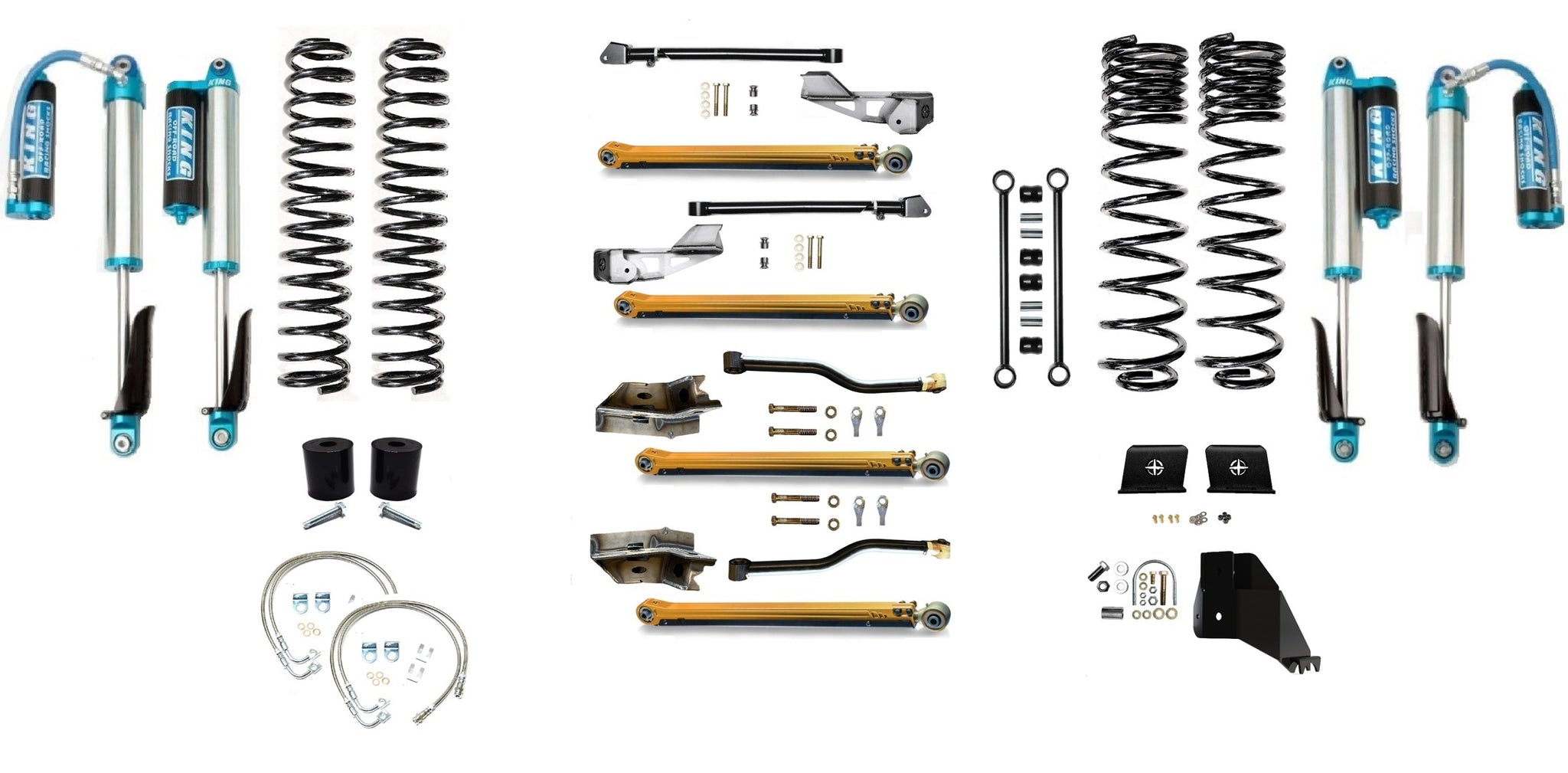

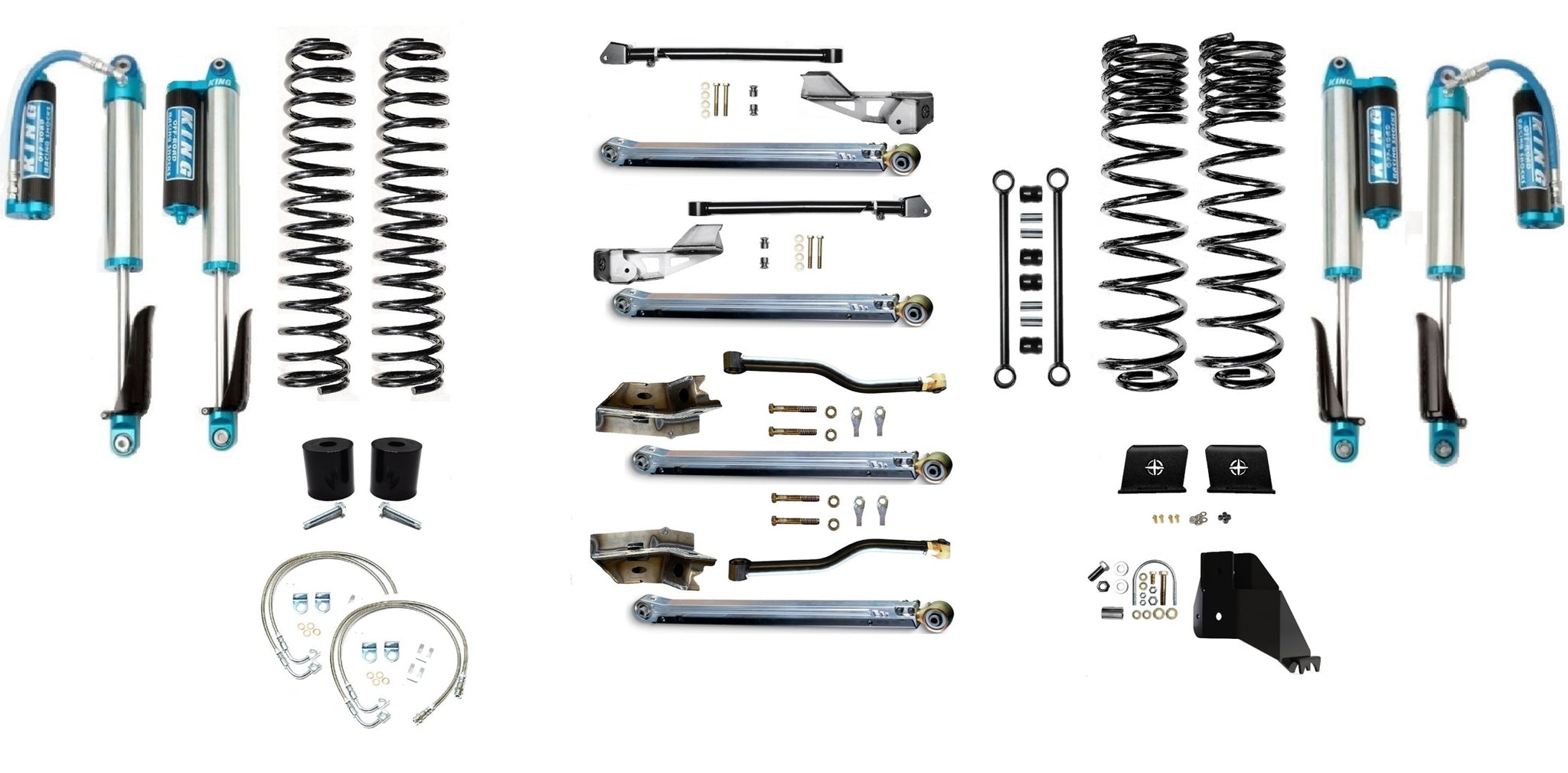

“K” Kits include a set of 4 EVO SPEC Remote Reservoir King Shocks.

Optioned 2.5" EVO SPEC Remote Reservoir King Shocks (both Standard and Adjustable) are Gladiator Mojave Compatible.

Upgrades:

EVO-3097V Front Inner Fenders
EVO-600081KB Front Air Bumps

MOJAVE: 2.0 and 2.5" King Shocks ARE Mojave compatible. Bilstein Shocks are not compatible. Longer replacement shocks are required on 4.5”+ lift kits

INSTALLATION TIME 20-30 HOURS

Image may differ from actual product

Read More
Read Less
Download PDF Instructions:

EVO-3060.pdf

All Products Manufactured by EVO Manufacturing shall have a Limited Lifetime Warranty on defects in material and craftsmanship.

All products must be on the original vehicle it was installed on by the original purchaser and is not transferable

Proof of purchase is required for all warranty claims

EVO Manufacturing is not responsible for any labor charges, shipping charges and other costs in result of a warranty claim of any EVO Manufacturing product

EVO Manufacturing is not responsible for any and all costs associated with incidental and consequential damages and are excluded under this warranty, regardless of when, where or why the warranty occurs

All EVO Manufacturing products must be deemed to be installed correctly, unaltered, free from abuse and combined with other appropriate equipment/products/components.

All return/warranty products must be recieved in new, unused, unmodified, undamaged condition to qualify for credit.

Exceptions to stated warranty:

Wearable items are not included in warranty.  These products include but are not limited to tie rod ends, draglinks, bushings, bump stops, bearings, heim joints, uniballs/spherical bearings etc. and hardware

Any substitution of other manufactures components or exemption of required and or supplied components will immediately void all warranties.

EVO Manufacturing does not warranty any product not manufactured by EVO Manufacturing.

EVO Manufacturing warranty applies to only products purchased, sold, installed and remaining in the United States of America.

All product finishes provided are warranted to be free from defects at time of sale only.

Springs and Shocks are warrantied against manufacturing defects only and are only returnable if they have not been installed on a vehicle.

EVO Manufacturing products that are used for competition and or racing immediately void all warranties.

EVO Manufacturing recommends the installation of EVO MFG products be installed by certified technicians only.

EVO Manufacturing is not responsible or liable for any loss, damage, injury whether consequential, ordinary, direct, special or incidental arising from the manufacture, sale, resale, installation, delivery, possession, handling and or use of its products.

Electronic components and products provided by EVO MFG will have a 90 Day Warranty and must be deemed free if any tampering or accidental damages or abuse.

EVO Manufacturing is not responsible for any typographical errors in either pricing or content related to all EVO Manufacturing related products, items, websites, packaging, instructions etc.



Disclaimers:

Warranties: EVO Mfg. disclaims any other warranties, whether express or implied, beyond those set out in the above-entitled “Warranties” provision. Warranties specifically disclaimed include but are not limited to any implied warranties, any warranty of suitability, any warranty of merchantability, or any warranty of fitness for a particular purpose.

Consequential Damages: EVO Mfg. will not be responsible for damages resulting in negligence, alteration, accident or use for which the part was not approved by the manufacturer or EVO. EVO will not be responsible for loss time, inconvenience, loss of use of a vehicle or any other consequential damages, or labor for removal from the vehicle and reinstallation (if any) or any part or merchandise.



Shipping:

We ship our parts anywhere in the world.  Due to varying shipping rates, taxes and duties we require all orders to be placed through email (sales@evomfg.com) or phone calls (310.761.9588) to better assist you, the customer, in receiving the most accurate and cheapest shipping rates.

Please allow one business day for order processing. The majority of orders are shipped immediately if your item is in stock and available. You will receive an email notification within 2 business days, notifying you that your item(s) has shipped. If your item is currently not in stock, it will have to be made to order which may take up to 8 weeks. In such instances you will be contacted via email by Customer Service.

Terms of sale: All products shipped FOB EVO MFG and the buyer assumes all risk of damage or loss.
Insurance is available through the carrier at an additional charge. Signature required is available upon request.

Please note because we are located in Southern California all orders shipping to locations within Southern California usually arrive the next business day via Fedex or UPS Ground.

For orders shipping outside the US, please email sales@evomfg.com for shipping options.

Damaged or Missing Items:


Please verify that all contents shown on the bill of materials located on the instructions are free from damage or defects.

EVO MFG will not be held resposible for missing or damaged items caused by shipping or packaging.

EVO MFG must be notified if you have missing or damaged items within 7 days after delivery date. Contact 310.761.9588

FITMENT VERIFICATION:

All raw products should be checked for defects and for proper fitment prioir to powdercoating or painting. Incorrect items or defects must be brought to the attention of EVO MFG prior to powdercoating or painting.

EVO MFG is not responsible for cost associated with powdercoating or painting of parts that were not previously verified.

Sales Tax
For all orders shipped within California, there will be an 8.00% sales tax automatically calculated and added to your order total at time of checkout. Orders shipping to all other states will be exempt from sales tax.

Cancelling or Changing Orders
Orders can not be cancelled once you have completed the checkout process. However, we will do our best to accommodate you if you need to make any changes. Please contact Customer Service as soon as possible.
